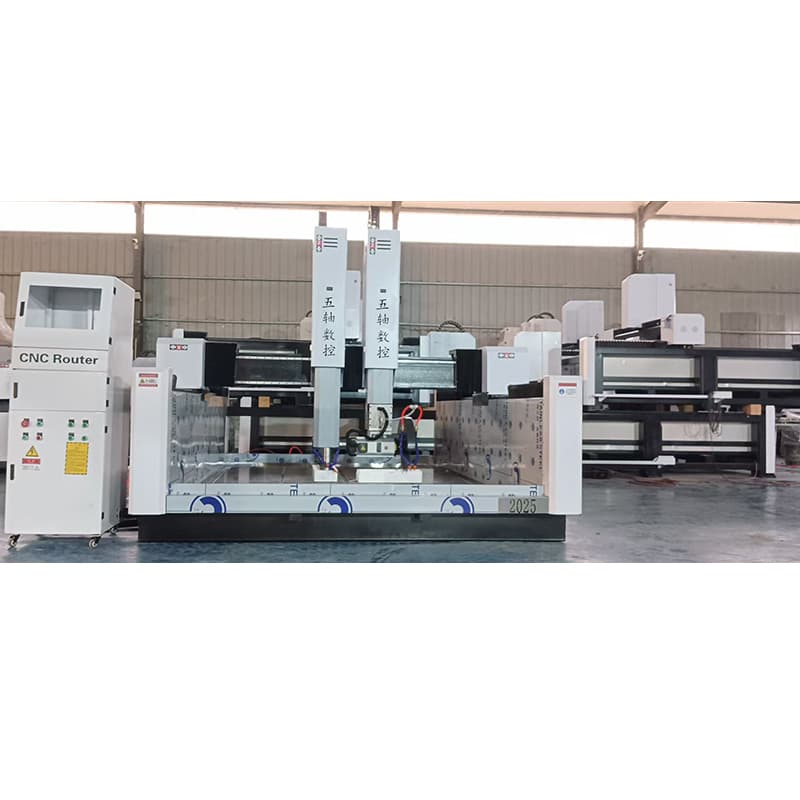

2025 StoneEngraving Machine
REMEYA 2025: An industrial engraving & sawing machine for stone/metal/glass, combining ultra-high precision (±0.05mm) and dual-function operation in one system for tombstone and decorative stonework.
REMEYA 2025 Engraving & Sawing Machine The REMEYA 2025 integrates engraving and sawing capabilities for high-efficiency processing of hard materials (stone, metal, glass). Its core strengths include dual-function operation, industrial waterproofing, and ultra-high precision (±0.05mm), ideal for tombstone carving, stone reliefs, and decorative trim cutting.
Key Features: Dual-Function Design: Simultaneous engraving and cutting with a 400mm saw blade. High-Precision Structure: Transmission: High-precision helical gears + 2505 ball screws. Rails: 25mm high-precision square rails for stable high-speed operation. Industrial Durability: Frame: Tempered steel with anti-corrosion coating, stainless water barriers, and heavy-duty legs. Table: Anti-corrosion polyester board + T-slots (10+ years lifespan). Energy Efficiency: 5.5kW patented spindle (P4 efficiency) + BEST inverter (saves 10kWh/day). Safety Monitoring: Spindle temperature sensor for real-time protection.
|
Model
|
2025 Engraving & Sawing Machine
|
|
Working Area
|
X-axis: 2000mm, Y-axis: 2500mm, Z-axis: 700mm
|
|
Saw Blade Diameter
|
400mm
|
|
Max Working Speed
|
8-15m/min
|
|
Spindle Power
|
5.5kW (P4 Efficiency, )
|
|
Transmission
|
High-Precision Helical Gears + 2505 Ball Screws
|
|
Repositioning Accuracy
|
±0.05mm
|
|
Guide Rails
|
25mm High-Precision Square Rails
|
|
Control System
|
5-Axis CNC Engraving & Sawing System
|
|
Inverter
|
BEST (Energy-Saving, Saves 10kWh/Day)
|
|
Voltage
|
380V/220V
|
|
Frame Structure
|
Steel Frame with Tempering, Anti-Corrosion Coating & Stainless Barriers
|
|
Table Structure
|
Anti-Corrosion Polyester Board + T-Slots
|
|
Dust/Waterproof Design
|
Stainless Steel L/U-Shaped Seals
|
|
Toolbox
|
Engraving Tools, Software, Pattern Library, Wrenches, Clamps, Water Tank
|
|
Warranty
|
1-Year Full Warranty, Lifetime Support
|
