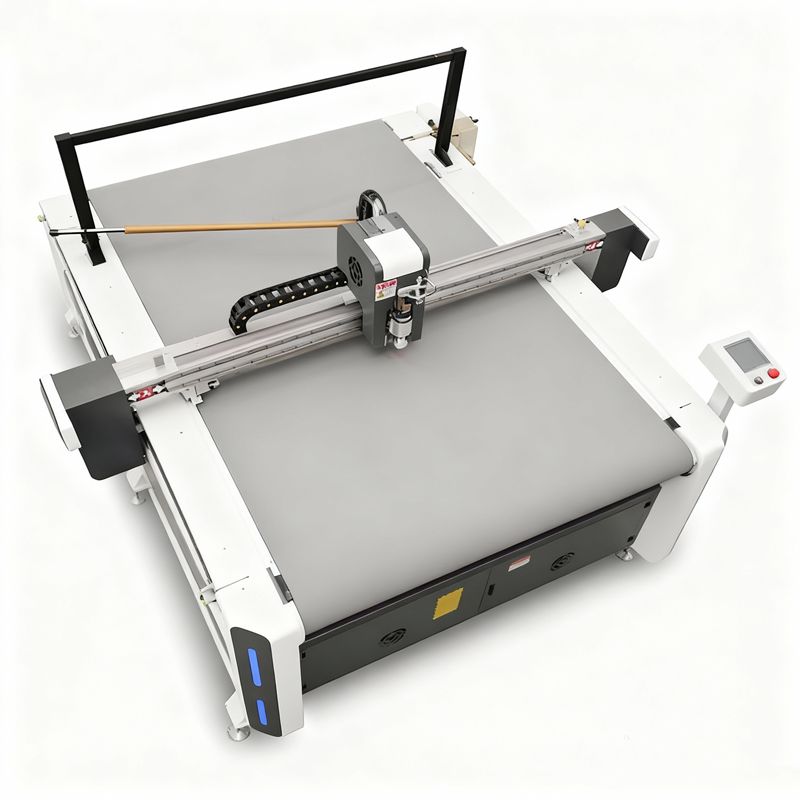

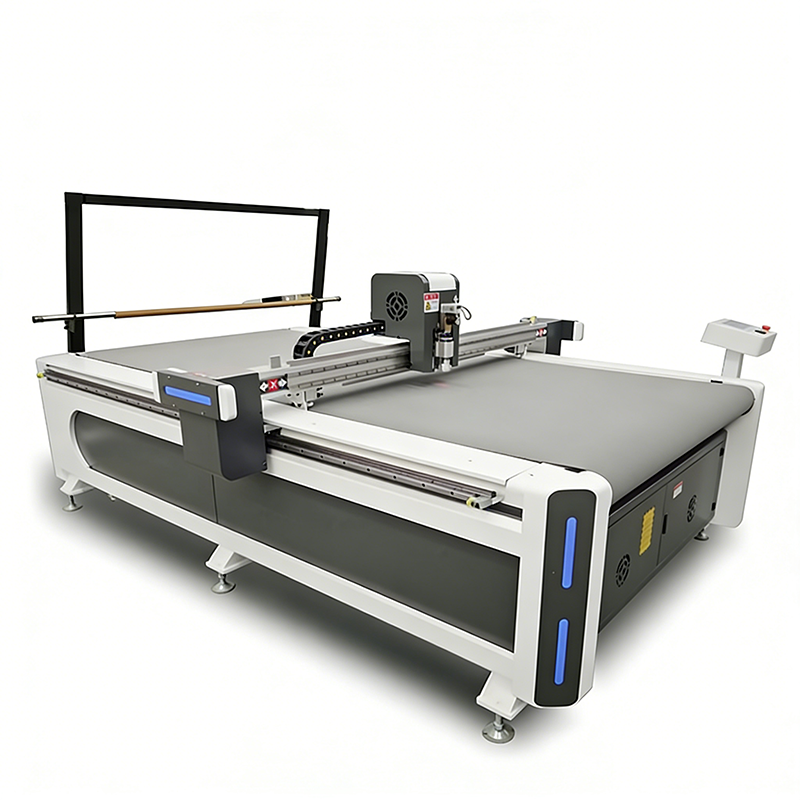

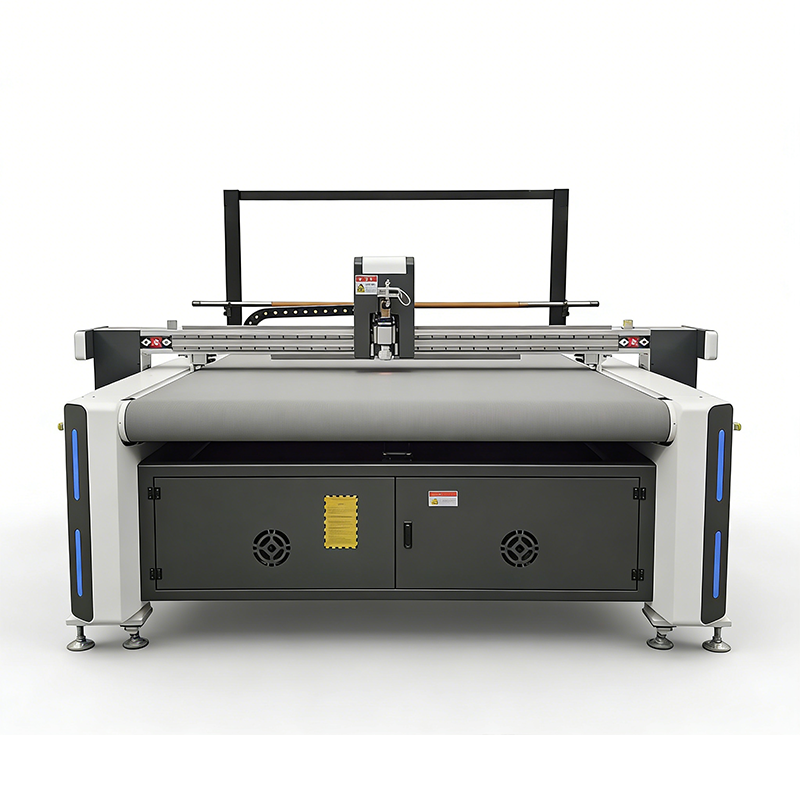

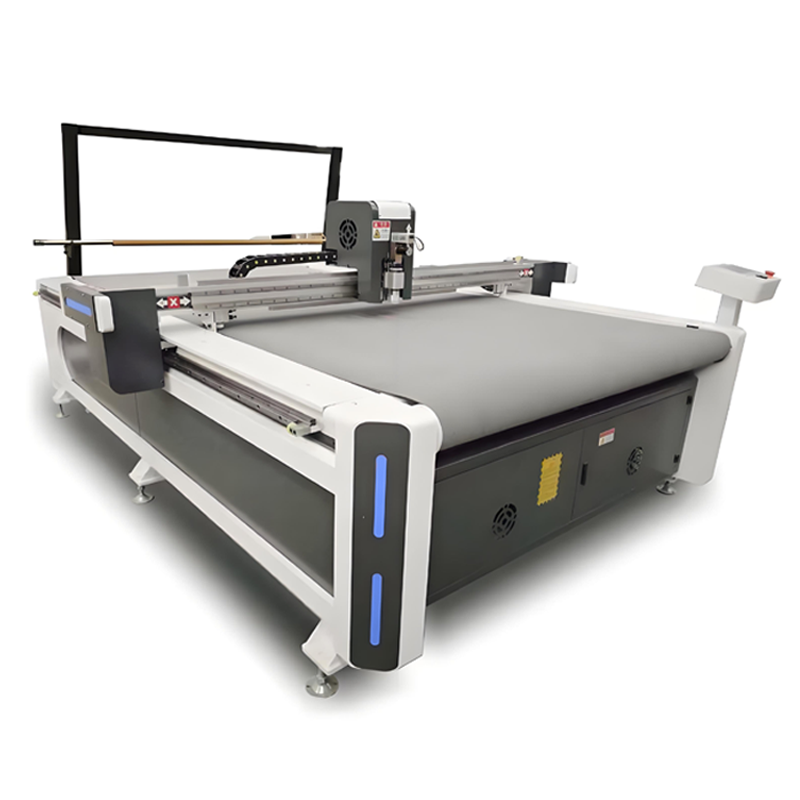

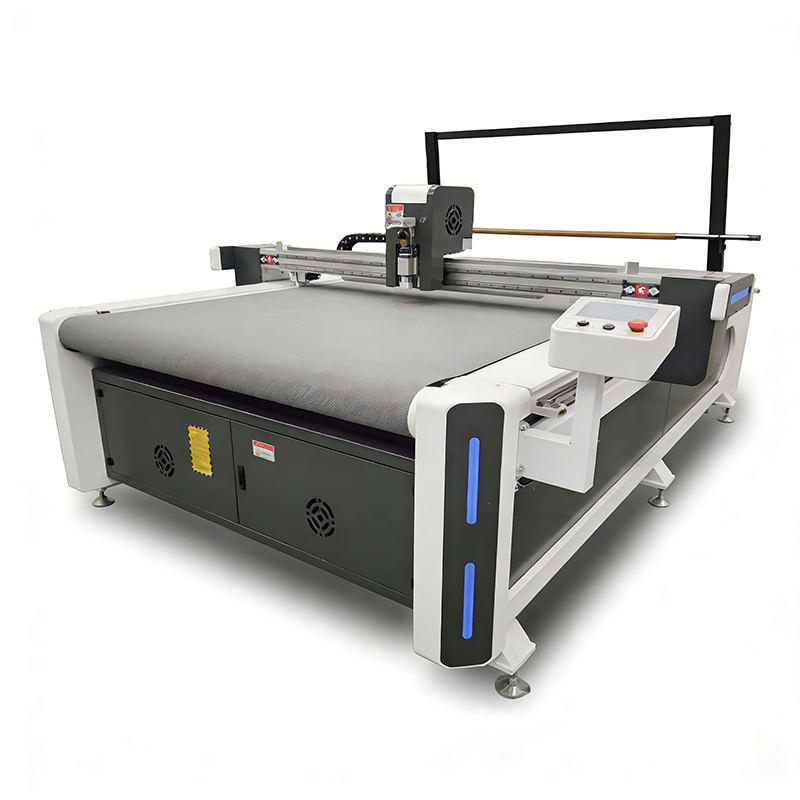

Oscillating Knife Cutting Machine
Oscillating Knife Cutting Machine from REMEYA is a specialized CNC equipment designed for cutting various flexible materials. It is extensively used for cutting non-metallic soft materials like leather, cloth, foam, rubber, silicone, and composite materials. High-frequency vibration blades and smart control systems form the key technology of this Oscillating Knife Cutting Machine, and both are jointly introduced to have efficient and precise cutting capability. The new-type CNC cutting machine is specifically utilized for fitting complicated shape processing and high-precision machining requirements in industrial production.
Key Features
• Precision ±0 05mm Positioning Accuracy
• High Speed Cutting 78 Meters per Minute
• Swiss MAXON Oscillating Knife Head
• User Friendly LCD Touch Screen Control
• Powerful 5 5KW Spindle Motor
• Large 1600x2500mm Work Area
• Robust 600KG Construction Guarantees Stability
• Compatible with CAD CorelDRAW Software
• Customizable Configuration Tailored Production Requirements
• Servo Motor Drive System Precise Motion Control
• Free Lifetime Software Upgrades with latest features
• Generous Warranty and Support lifelong customer service
Description
REMEYA Oscillating Knife Cutting Machine is precision engineered and optimized for efficiency. Featuring a heavy-duty worktable of 1600x2500mm, this machine features best-in-class positioning accuracy of ±0.05mm, allowing for perfect cuts with all materials. Featuring a 5.5KW spindle motor and a Swiss-made MAXON high-speed vibrating cutter head, the machine allows for smooth and high-speed cutting at speeds of up to 78 meters/minute.
Computer numerical control cutting machine has a basic LCD touch screen control system and can be used with the most common compatible CAD/CorelDRAW software. The servo motor driving mechanism has stable and accurate motion. The motor, gearbox, and PLC are chosen for a long lifetime, and the machines have a 1-year guarantee, video outgoing-inspection report, and machinery test report to ensure quality. Adaptable to certain customer requirements, this machine best suits high-usage uses such as embossing, polishing, and laminating.
| Machine Model | Vibration Knife Cutting Machine |
| Machine Dimensions | 2100mm × 3300mm × 1400mm |
| Working Area | 1600 × 2500 × 80mm |
| Automatic Grade | Automatic |
| Warranty | 1 Year |
| Voltage | 380V, 220V |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear |
| Type | Embossing Machine, POLISHER, Laminating |
| Weight (KG) | 600KG |
| Place of Origin | Shandong, China |
| Brand Name | REMEYA |
| With Camera or Not | Without Camera |
| Working Type | CNC Automatic Cut |
| Range of Spindle Speed | 0-24000 RPM |
| Spindle Motor Power | 5.5KW |
| Positioning Accuracy | ±0.05mm |
| Features | High Efficiency |
| Vibrating Cutter Head | MAXON Switzerland |
| Cutting Speed | 78 Meters/Minute |
| Control System | LCD Touch Screen |
| Drive System | Servo Motor |
| Operating Software | CAD/CorelDRAW |
| Configuration Note | Customized per Customer Needs |
1.Precision-Engineered Work Area (Custom XYZ-Axis Travel)
2.Variable Spindle Power (1.5KW-5.5KW Range)
3.Adjustable Gantry (Customized travel range)
4.Optimized Table Height (For comfort of operator)
5.Branded Logo Integration (Can Be Laser-Engraved Permanence)
6.Custom Color Options (Pantone-Matched Coating)
7.Multi-Clamping Systems (Vacuum Adsorption + T-Slot)
Component | Customization | |||
Conveyor Suction Cup | Material/Size Customizable | |||
Air Flotation System | Zones/Air Pressure Customizable | |||
Wiring Harness | Length/Interface Customizable | |||
Timing Pulley | Material/Teeth Count Customizable | |||
Guide Rail | Length/Hardness Customizable | |||
Travel Guide | Structure/Precision Customizable | |||
