S-WZ1825 Stone Carving machine
REMEYA WZ1825: A dual-head, high-speed (50,000mm/min) stone engraving machine for oversized materials, featuring industrial waterproofing and 5-10 ton capacity for efficient tombstone and architectural stonework.

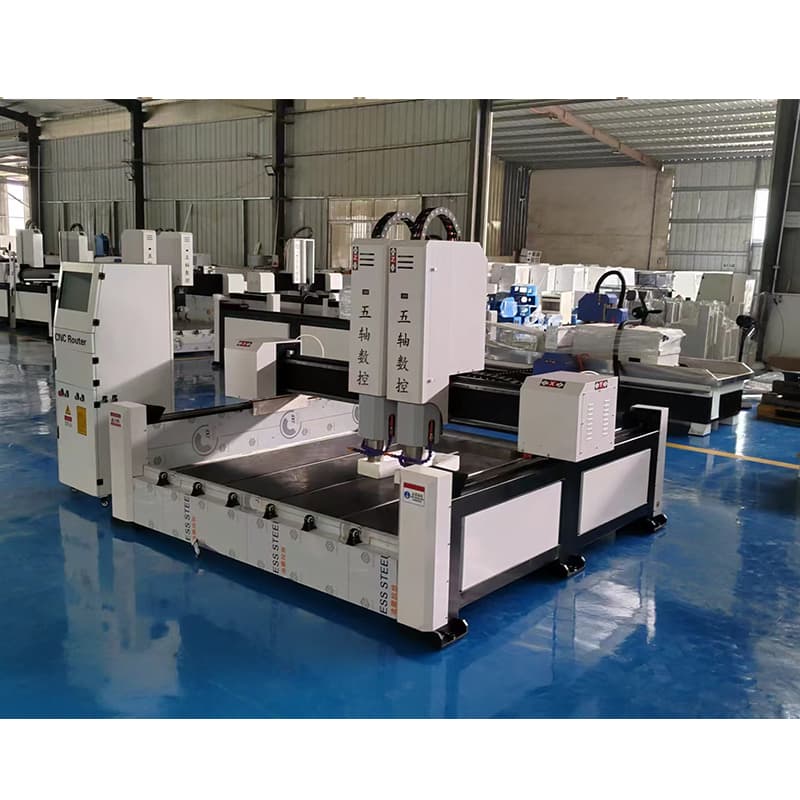

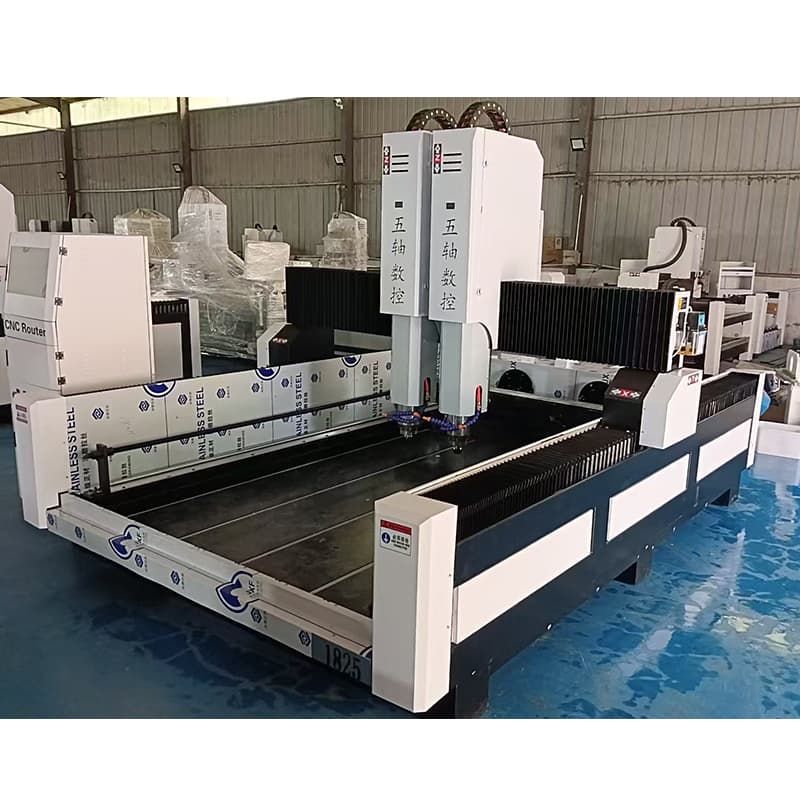

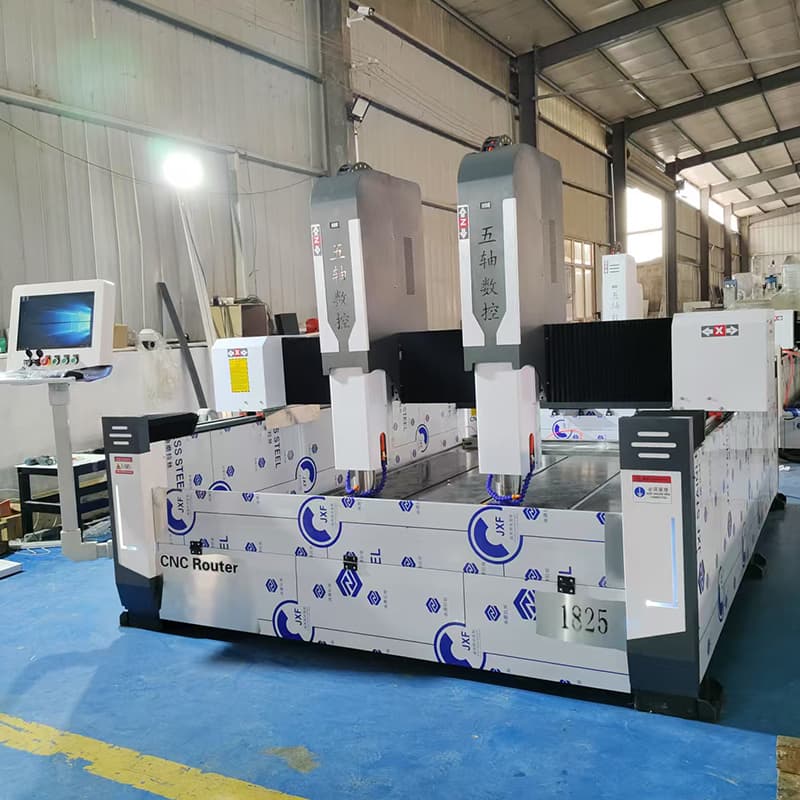

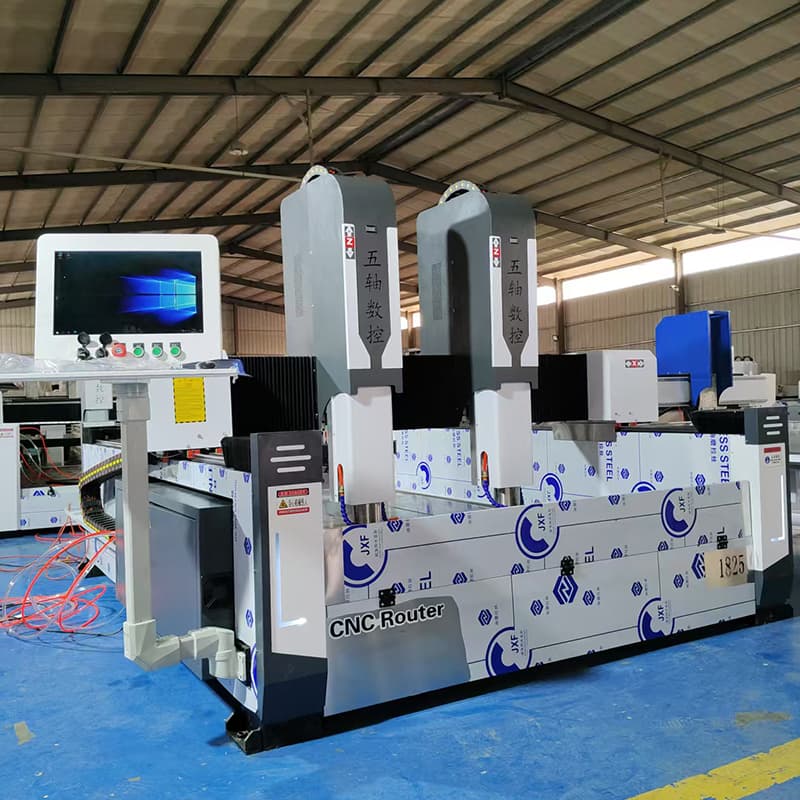

REMEYA WZ1825 Dual-Head High-Speed Stone Engraving Machine The REMEYA WZ1825 is engineered for heavy-duty stone processing, supporting oversized materials (X:1800mm, Y:2500mm, Z:500mm) and ultra-high speeds (50,000mm/min). Its core strengths include dual-head synchronization, industrial waterproofing, and modular intelligence, ideal for tombstones, architectural reliefs, and decorative stonework.
Key Features: Dual-Head Synchronization: Dual spindles operate at 50,000mm/min, doubling productivity. Industrial Durability: Full stainless steel enclosure with U-shaped dust/waterproof seals. Reinforced steel frame (5-10 tons load capacity) with anti-corrosion coating. Anti-corrosion T-slot tabletop (10+ years lifespan). Smart Control: STEP servo integrated system for precision; Shanlong control system with 4-step operation. Energy Efficiency: 7.5kW patented spindle (P4 efficiency) + BEST inverter (saves 10kWh/day).
|
Model
|
WZ1825 Dual-Head High-Speed Stone Engraving Machine
|
|
Working Area
|
X-axis: 1800mm, Y-axis: 2500mm, Z-axis: 500mm
|
|
Max Speed
|
50,000mm/min
|
|
Spindle Power
|
7.5kW (P4 Efficiency, )
|
|
Control System
|
STEP Servo Integrated System + Shanlong 4-Step Control
|
|
Reducer
|
Japan Shimbō Reducer
|
|
Inverter
|
BEST (Energy-Saving, Saves 10kWh/Day)
|
|
Electrical Components
|
Delixi Brand Components
|
|
Frame Structure
|
Tempered Square Steel + Anti-Corrosion Coating + Stainless Enclosure
|
|
Table Structure
|
Anti-Corrosion Polyester Board + T-Slots
|
|
Guide Rails
|
25mm High-Precision Square Rails (9 Rails Total)
|
|
Transmission
|
Taiwan High-Precision Helical Gears + TBI Ball Screws
|
|
Repositioning Accuracy
|
±0.05mm
|
|
Command Code
|
G-code
|
|
Load Capacity
|
5-10 Tons
|
|
Total Power
|
24kW
|
|
Voltage
|
380V
|
|
Dust/Waterproof Design
|
U-Shaped Stainless Seals
|
|
Toolbox
|
Engraving Tools, Software, Pattern Library, Wrenches, Clamps, Water Tank
|
|
Warranty
|
1-Year Full Warranty, Lifetime Support
|
