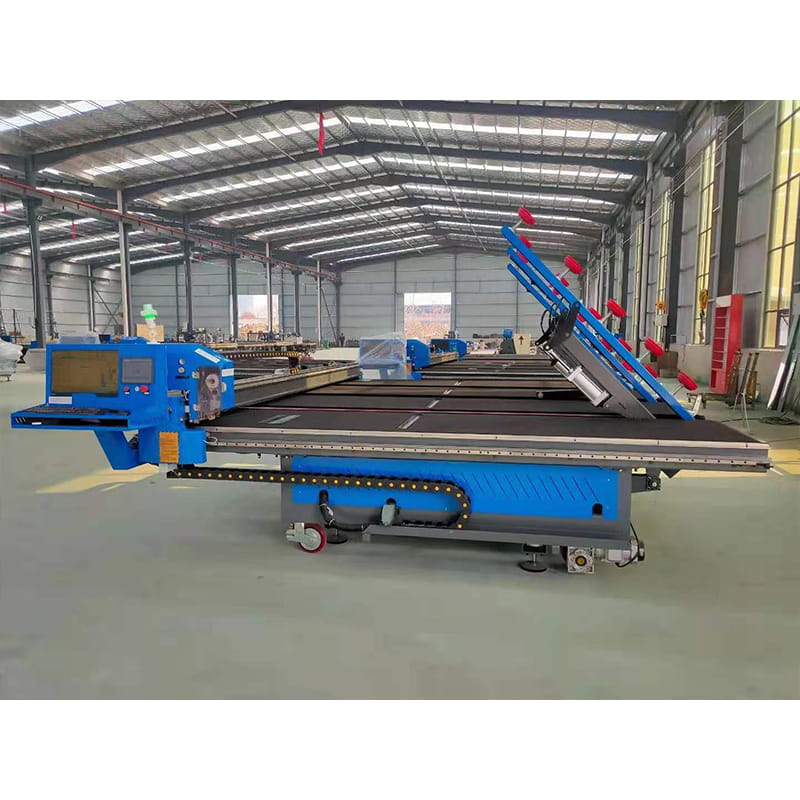

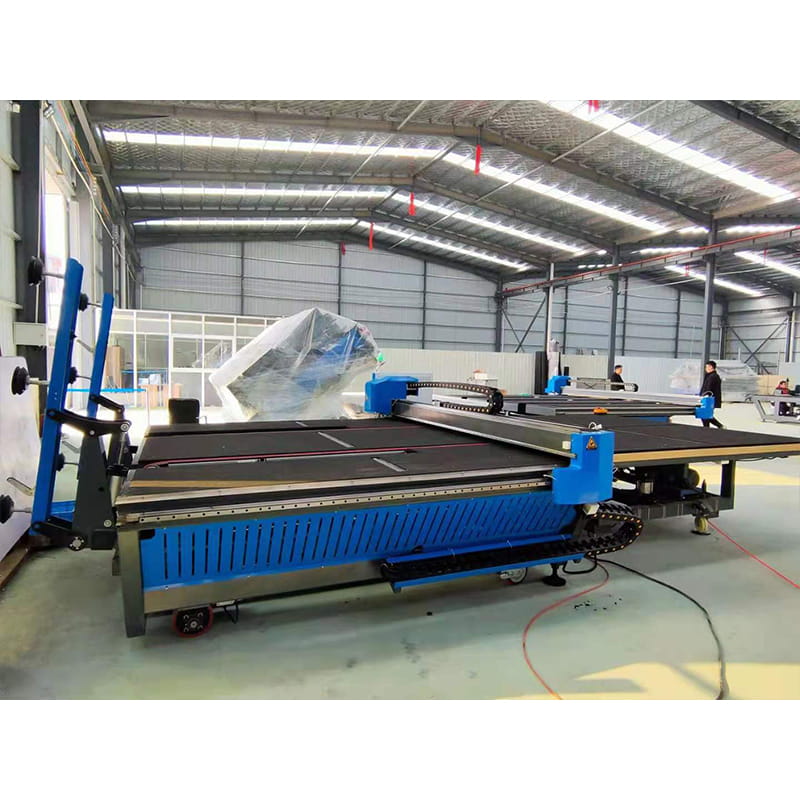

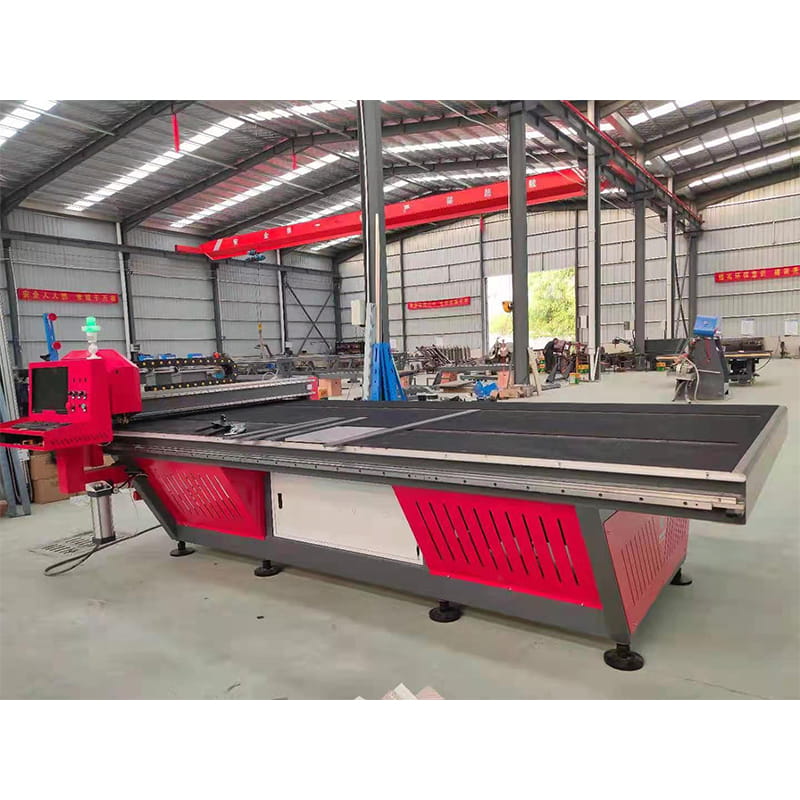

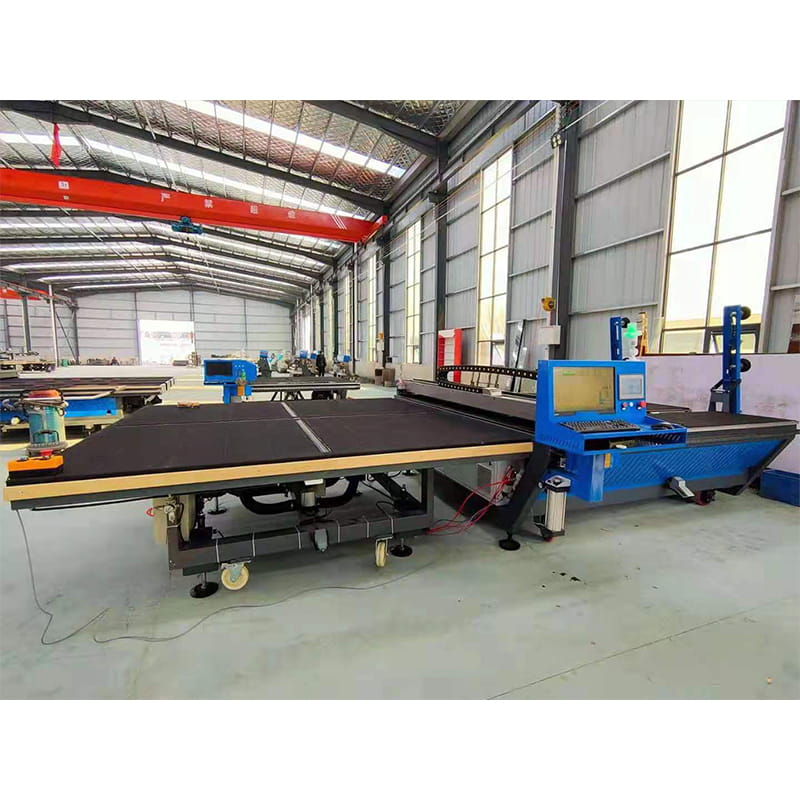

WZ-2721 Glass Cutting Machine
REMEYA WZ-2721 Fully Automatic Glass Loading & Cutting Machine: Developed by Jinan 5-Axis CNC, this integrated system delivers high-precision cutting (±0.2mm/m) and intelligent nesting for efficient processing of architectural and decorative glass.
REMEYA WZ-2721 Fully Automatic Glass Loading & Cutting Machine Developed by Jinan 5-Axis CNC Equipment Co., Ltd., the REMEYA WZ-2721 integrates automatic glass loading, cutting, and splitting, designed for high-efficiency industrial glass processing in architecture, decoration, and crafts. Its core strengths include full automation, precision cutting (±0.2mm/m), and intelligent nesting to maximize material utilization.
Key Features: High-Precision Structure: Imported helical racks, dual-axis milling guides, cutting speed up to 200m/min. Smart System: Compatible with OPTIMA (Italy) and domestic software (G-code), fiber laser positioning, and infrared scanning for complex shapes. Full Automation: Servo-driven loading system, air flotation platform, and automatic lubrication ensure stability. Robust Design: Waterproof phenolic tabletop, aviation-grade aluminum beams, and reinforced welded frame
| Model | WZ-2721 Automatic Glass Loading & Cutting Machine |
| Machine Footprint | 17㎡ |
| Operator Requirement | 1 operator (basic computer skills) + 1 assistant (glass splitting experience) |
| Cutting Area | MAX. 2600×2100mm |
| Glass Thickness | 2-19mm |
| Cutting Speed | X/Y-axis: 0-200m/min (adjustable) |
| Cutting Accuracy | ≤±0.2mm/m |
| Loading Cycle | 15-40s |
| Air Flotation Pressure | 0.6MPa |
| Power Supply | 380V/50Hz, 6-8kW |
| Main Components | Siemens PLC, Panasonic laser sensor, BOHLER cutting head |
| Frame Material | Thickened steel with high-temperature annealing |
| Table Structure | Waterproof phenolic board + anti-static industrial felt |
| Control System | Xingduowei industrial PC with high-resolution display |
| Warranty | Full machine warranty |
