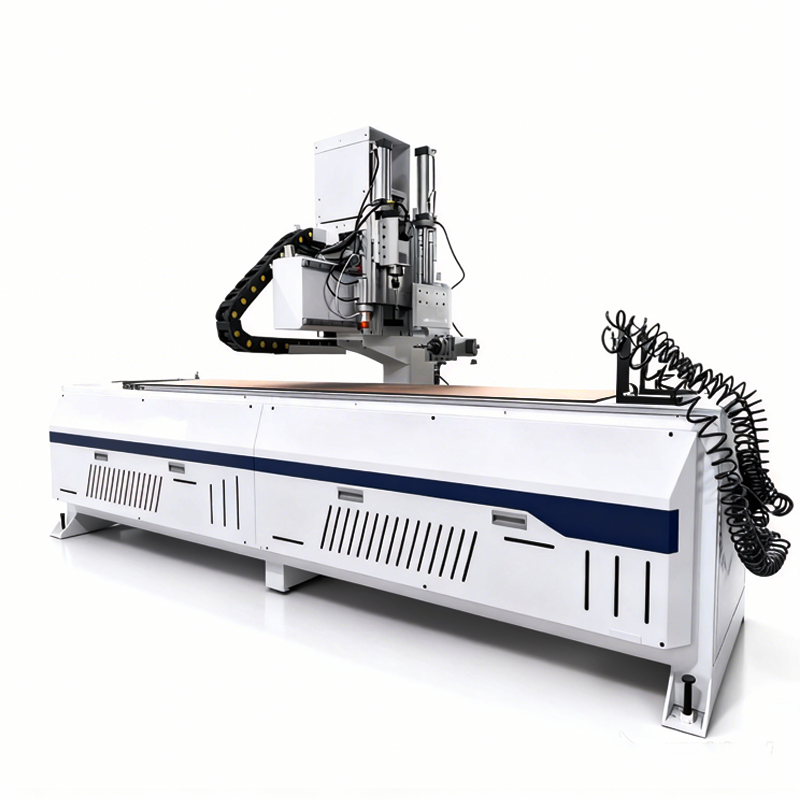

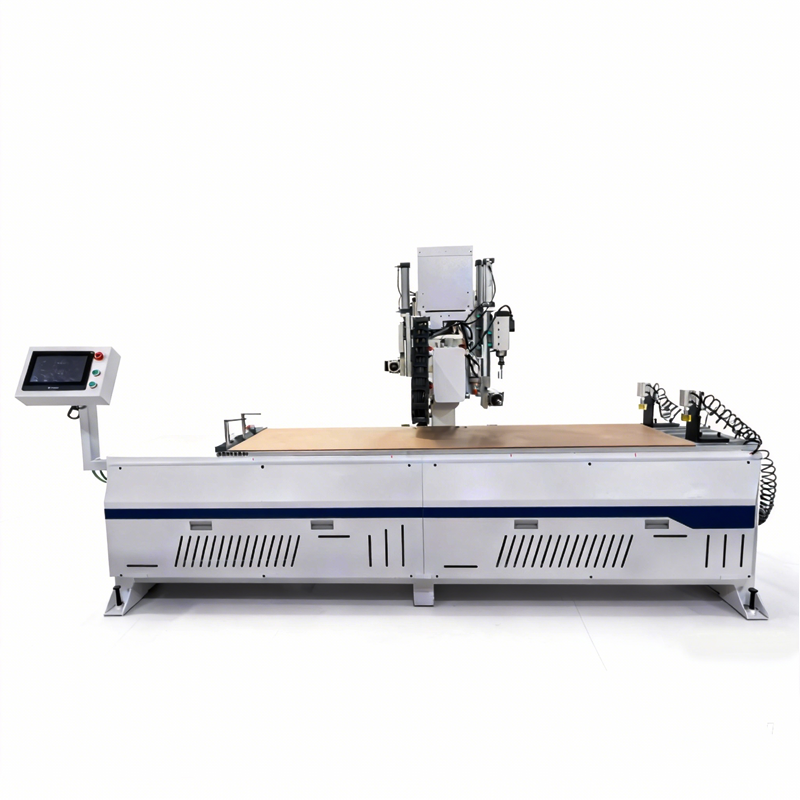

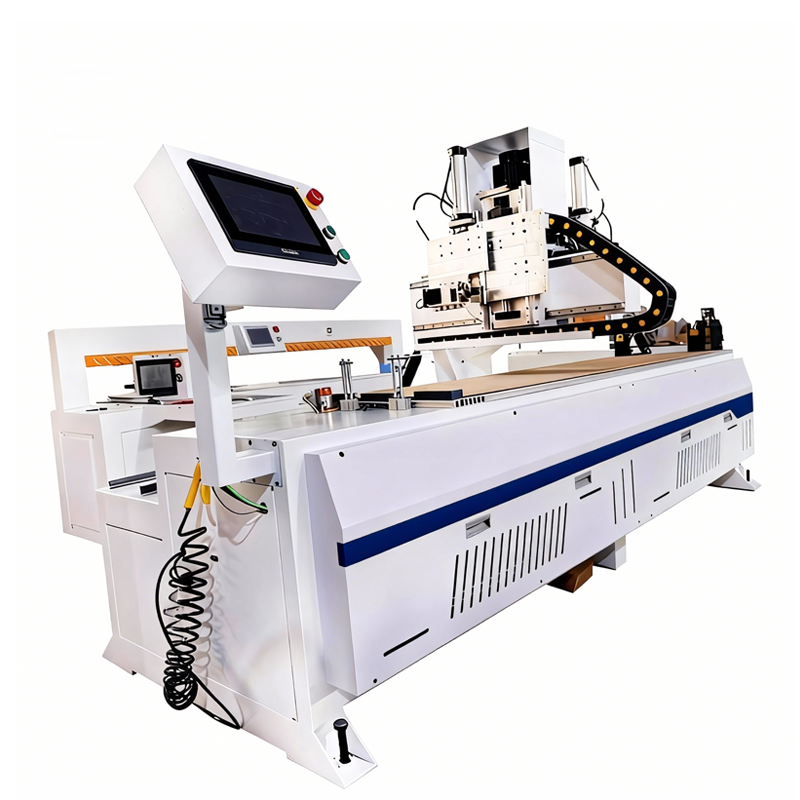

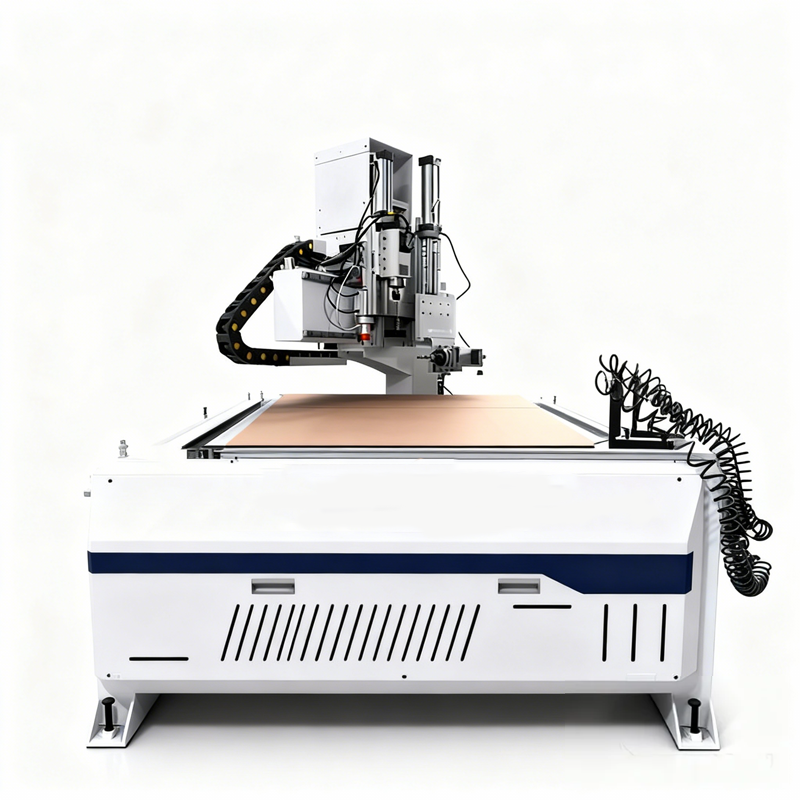

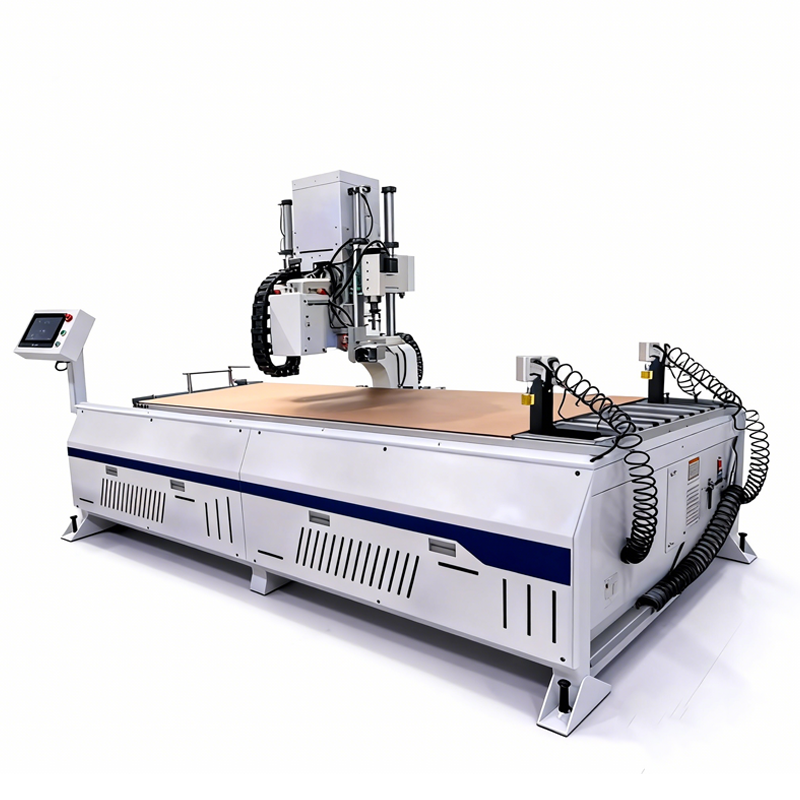

High-Precision Door Lock Hole Drilling Machine for Solid Wood Doors
REMEYA door lock hole drilling machine is a very important piece of equipment that is used in door manufacturing workshops and factories. This machine is designed to perform the drilling of lock holes, hinge holes, and peepholes on wooden doors accurately, so that these holes are properly aligned. This has the potential to drastically increase production efficiency and improve accuracy with respect to the drilling of holes, which can only be done manually. In addition to standard hole drilling, this advanced door lock hole drilling machine can cut shapes and even engrave designs on door panels for an added layer of functionality and aesthetic appeal.
Key Features
• Includes synchronized 3-spindle high-efficiency drilling system.
• Features a large 2500x500mm aluminum profile work table.
• Equips 8 pneumatic fixtures for secure and rapid material clamping.
• Provides versatile engraving and custom shape cutting capabilities.
• Boasts reinforced stop blocks for enhanced structural stability.
• Uses an open-front design for easy material loading and operation.
• Supports full English operation interface and G-code compatibility.
• Allows program input via USB or other standard interfaces.
• Enables custom branding with your own LOGO and model name.
• Processes hinge, lock, peepholes, and custom windows precisely.
Description
The must-have door lock hole drilling machine for contemporary door manufacturing is the REMEYA WR255 CNC. Designed with high-volume production in mind, this door lock hole drilling machine is ideal for exact repeat drilling of hinge holes, lock holes, and peepholes in solid wood doors. Its synchronized 3-spindle design functions over a large working area of 2500mm x 500mm, allowing for the simultaneous processing of multiple holes.
Designed with industrial robustness in mind, this door lock hole drilling machine boasts a strong aluminum profile table, 8 pneumatic fixtures for secure clamping, and reinforced stop blocks to make it rock-steady during high-speed drilling. And this door lock hole drilling machine provides immense additional value with its capability to function as an engraving machine that can carve customized decorative patterns or shapes such as semicircular windows on door panels.
Control is simplified with an entirely English interface, accepting standard G-code programs via USB. The functional open-front design makes it easy to manipulate the large door panels. More importantly, door lock hole drilling machine fully supports white-label branding, so you can easily apply your own business LOGO and model name.
Model | WR-255 |
Power Supply Voltage | 400V 50Hz |
Processing Area | 2500mm * 500mm * 200mm (XYZ) |
Work Table Surface | Aluminum profile |
Material Fixation | 8 Pneumatic Fixtures (4 fixed claws + 4 movable claws) |
Spindle Configuration | 3 Engraving Spindles |
Reinforced Structure | Sturdy stop blocks at the rear and both ends |
Primary Processing Material | Solid wood |
Processing Capabilities | Hinge holes, lock holes, peepholes, custom semicircular windows |
Operation Interface | Fully English (no Chinese display) |
Program Input | Via USB or other interfaces |
Drive Compatibility | G-code |
Front Structure | Open-front design (similar to provided Diagram 3) |
Branding | Supports customer’s own LOGO and model name application (no supplier brand info) |
1.Precision-Engineered Work Area (Custom XYZ-Axis Travel)
2.Variable Spindle Power (1.5KW-5.5KW Range)
3.Adjustable Gantry (Customized travel range)
4.Optimized Table Height (For comfort of operator)
5.Branded Logo Integration (Can Be Laser-Engraved Permanence)
6.Custom Color Options (Pantone-Matched Coating)
7.Multi-Clamping Systems (Vacuum Adsorption + T-Slot)
Component | Customization | |||
Conveyor Suction Cup | Material/Size Customizable | |||
Air Flotation System | Zones/Air Pressure Customizable | |||
Wiring Harness | Length/Interface Customizable | |||
Timing Pulley | Material/Teeth Count Customizable | |||
Guide Rail | Length/Hardness Customizable | |||
Travel Guide | Structure/Precision Customizable | |||
