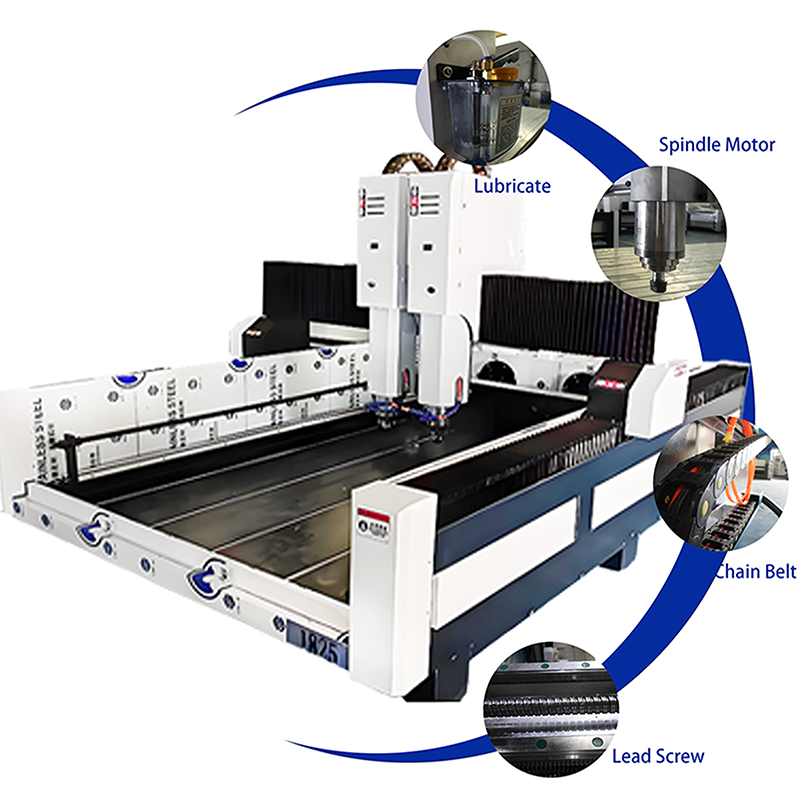

REMEYA Multi-Head Stone CNC Router is ideal for the high-volume stone processing industry production. This Multi-Head Stone CNC Router is designed to significantly boost production by double or mirror-image engraving products such as granite, marble, ceramics, glass, and metals. Best suited for headstone production, ornamentations for buildings, and detailed 3D sculptures, this features a heavy vibration-dampened gantry and square rails of precision grade with ball screws to provide ultimate stability and accuracy within ±0.05mm. Fitted with high-energy-saving 5.5KW spindles and a sophisticated temperature control system, this Multi-Head Stone CNC Router promises high-speed capacity up to 15m/min while safeguarding your investment.
Key Features
• Dual Independent Spindles for Simultaneous Processing
• Reinforced Steel Gantry Ensures Stable Operation
• High Precision Square Rails and Ball Screws
• Powerful 5 5KW Water Cooled Spindles
• Advanced Five Axis CNC System
• Energy Efficient Inverter Technology
• Comprehensive Stainless Steel Protection System
• Large Working Area Accommodates Oversized Items
• Built In Temperature Monitoring Protection
• Includes Tool Kit Pattern Library Software Updates
Description
High-Precision Multi-Head Stone CNC Router is a sophisticated computer-controlled engraving machine that is used for carving hard substances such as granite, marble, ceramic, glass, and metals. The machine finds application in grave stone engravings, architectural ornaments, art engravings, and signage manufacturing. The machine is very efficient and accurate.
This two-head Stone CNC Router doubles output and can perform mirror carving. It has a spacious working area and a gantry structure reinforced for optimum stability and permanent accuracy. The machine is equipped with high-precision ball screws and square rails to offer reproducible accuracy to ±0.05mm. With a 5.5kW energy-saving spindle and temperature detection system, it offers high-speed operation up to 15m/min with reduced power consumption.
This Multi-Head Stone CNC Router has a phenolic resin work table with T-slots that is heavy-duty, stainless steel water and dust shields, and a five-axis easy-to-use control system. Standard G-code can be accepted and the machine includes a full toolkit, large pattern library, and lifetime software updates. With one-year warranty and technical support for life, this equipment is convenient and reliable in a business setup.
Model | Multi-Head Stone CNC Router |
Working Area | X-axis: 1800mm, Y-axis: 2500mm, Z-axis: 500mm |
Max Speed | 50,000mm/min |
Spindle Power | 7.5kW (P4 Efficiency, ) |
Control System | STEP Servo Integrated System + Shanlong 4-Step Control |
Reducer | Japan Shimbō Reducer |
Inverter | BEST (Energy-Saving, Saves 10kWh/Day) |
Electrical Components | Delixi Brand Components |
Frame Structure | Tempered Square Steel + Anti-Corrosion Coating + Stainless Enclosure |
Table Structure | Anti-Corrosion Polyester Board + T-Slots |
Guide Rails | 25mm High-Precision Square Rails (9 Rails Total) |
Transmission | Taiwan High-Precision Helical Gears + TBI Ball Screws |
Repositioning Accuracy | ±0.05mm |
Command Code | G-code |
Load Capacity | 5-10 Tons |
Total Power | 24kW |
Voltage | 380V |
Dust/Waterproof Design | U-Shaped Stainless Seals |
Toolbox | Engraving Tools, Software, Pattern Library, Wrenches, Clamps, Water Tank |
Warranty | 1-Year Full Warranty, Lifetime Support |

1.Precision-Engineered Work Area (Custom XYZ-Axis Travel)
2.Variable Spindle Power (1.5KW-5.5KW Range)
3.Adjustable Gantry (Customized travel range)
4.Optimized Table Height (For comfort of operator)
5.Branded Logo Integration (Can Be Laser-Engraved Permanence)
6.Custom Color Options (Pantone-Matched Coating)
7.Multi-Clamping Systems (Vacuum Adsorption + T-Slot)
Component | Customization | |||
Conveyor Suction Cup | Material/Size Customizable | |||
Air Flotation System | Zones/Air Pressure Customizable | |||
Wiring Harness | Length/Interface Customizable | |||
Timing Pulley | Material/Teeth Count Customizable | |||
Guide Rail | Length/Hardness Customizable | |||
Travel Guide | Structure/Precision Customizable | |||
